nfltr orch: The Complete Tutorial

nfltr orch is the orchestration operator surface for hosted NFLTR at nfltr.xyz, and it has two faces. Typed with a group and a command — nfltr orch task status … — it is a scriptable CLI. Typed bare, it is an interactive operator console: a full-screen terminal app with live panes, a command bar, and keyboard shortcuts. Its own help calls it the primary operator loop. This guide documents both, end to end.

Every screenshot below is a real PTY capture of the shipped binary, not a mockup. They were taken against an isolated test fleet, so the relay address, worker name, and task ids you see in them belong to the capture rig rather than to your account.

1. Check readiness first

orch doctor is the one command to run before anything else. It checks the three things a run depends on — a coordinator CLI that is installed and authenticated, a worker backend, and relay reachability — and prints the next action:

$ nfltr orch doctor

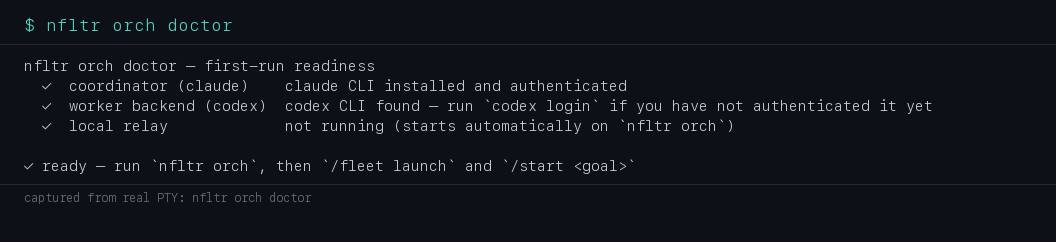

Captured with nfltr orch doctor. Add --json for CI, and --backend claude or --backend codex to check a specific worker backend.

2. Enter and leave the console

Open the console with no arguments. To open it already attached to a run, pass that run's id:

$ nfltr orch

$ nfltr orch --task TASK_ID

To leave it, press Esc or Ctrl+C, or submit /quit (q, quit and exit work too). Leaving the console does not stop an orchestration — use /detach to make that explicit, and /cancel when you actually want the run to stop.

Two flags change what the console is before it starts:

• --events N — how many timeline events to pull per refresh (default 20).
• --once — render a single frame and exit, instead of looping. Useful in scripts that only want the current picture.

Planner and coordinator choices are made at launch, not from inside:

$ nfltr orch --planner-cmd codex --planner-model MODEL --planner-effort EFFORT \
    --coordinator-provider PROVIDER --coordinator-model MODEL --coordinator-effort EFFORT

When stdin is not a terminal, the console falls back to a plain line-oriented reader instead of the full-screen renderer, so echo "/fleet workers" | nfltr orch behaves sensibly in a pipeline. For a repeatable sequence, use script mode: --script FILE runs newline-delimited console commands from a file (or - for stdin) and exits; blank lines and lines starting with # are ignored.

3. What the console shows you

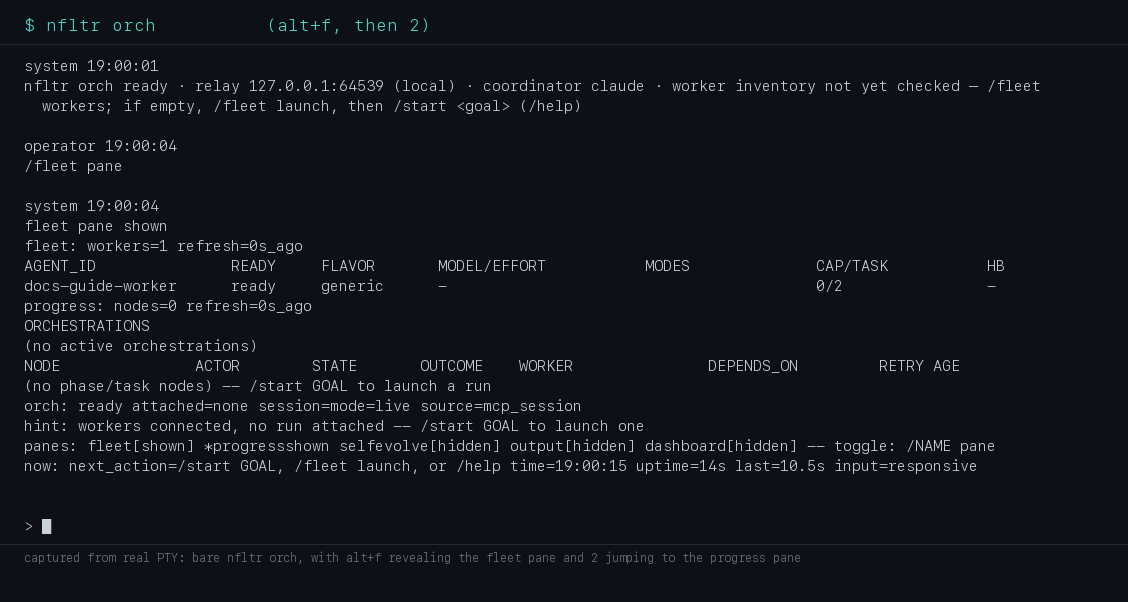

Captured with nfltr orch, then Alt+F to reveal the fleet pane and 2 to jump to the progress pane.

The frame is built from the bottom up. Reading upward from the prompt:

Depending on state, extra status lines appear between those: events: (live event counts by type), relay: (event-refresh health and latency), coord: (coordinator readiness), latency:, scroll:, and an issue:/alert: line when something needs you. On a short terminal the lower-priority ones yield so the prompt and the hint line always survive.

The five panes

Panes are hidden by default. Each has a uniform toggle command, /NAME pane, and refreshes on the console's own clock while it is visible — no separate polling to manage.

Two commands change what the panes are pointed at: /fleet select AGENT_ID focuses one worker, so the output pane tails that worker's active task, and /progress select ROOT_ID switches the progress pane to a different orchestration root.

The command bar

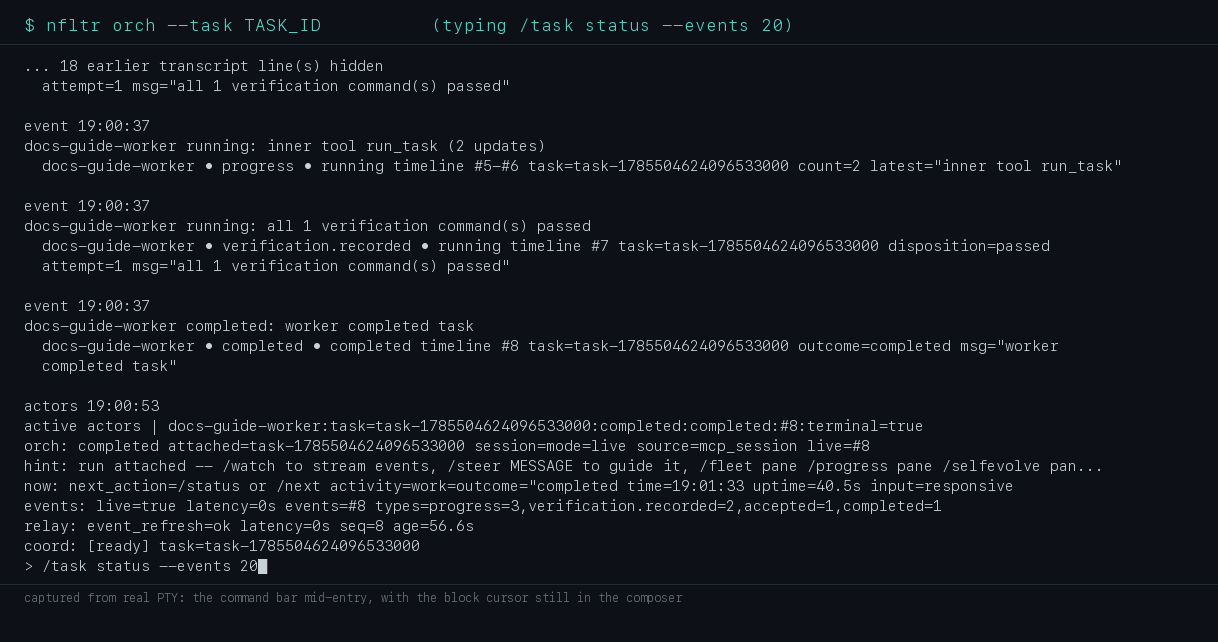

Captured with nfltr orch --task TASK_ID, typing /task status --events 20 and stopping before Enter.

The bar takes three kinds of input:

• Plain English. Anything without a leading slash goes to the coordinator, which starts a goal, answers from the timeline, or steers live work.
• Console commands. A leading / runs one of the commands in /help — most mirror an orch group, so /task status --events 20 is the same work as nfltr orch task status --task … --events 20 against the attached run.
• Multi-line text. Ctrl+J, Alt+Enter or Shift+Enter inserts a newline instead of submitting — useful for a long steer message.

The bar stays live while a command runs. Submitting another line queues it as a follow-up rather than interleaving output, and the now: line then shows the queued command and reminds you that Ctrl+G cancels. When the console has suggestions for your current situation, a shortcuts: line offers the first three under Alt+1…3 with Tab to cycle the rest.

Help without leaving the console

Press ? on an empty command bar (or submit /help) for the grouped overlay: getting started, fleet, run, panes, intervene.

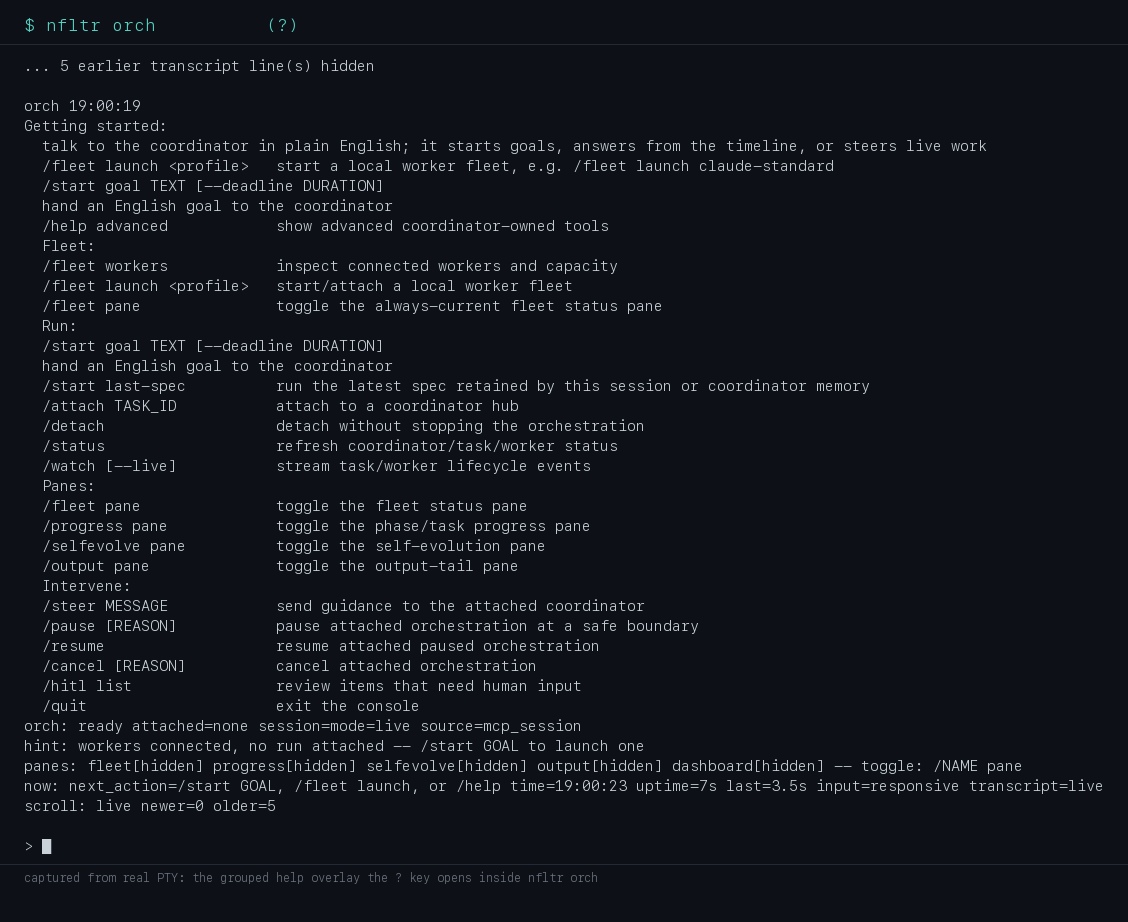

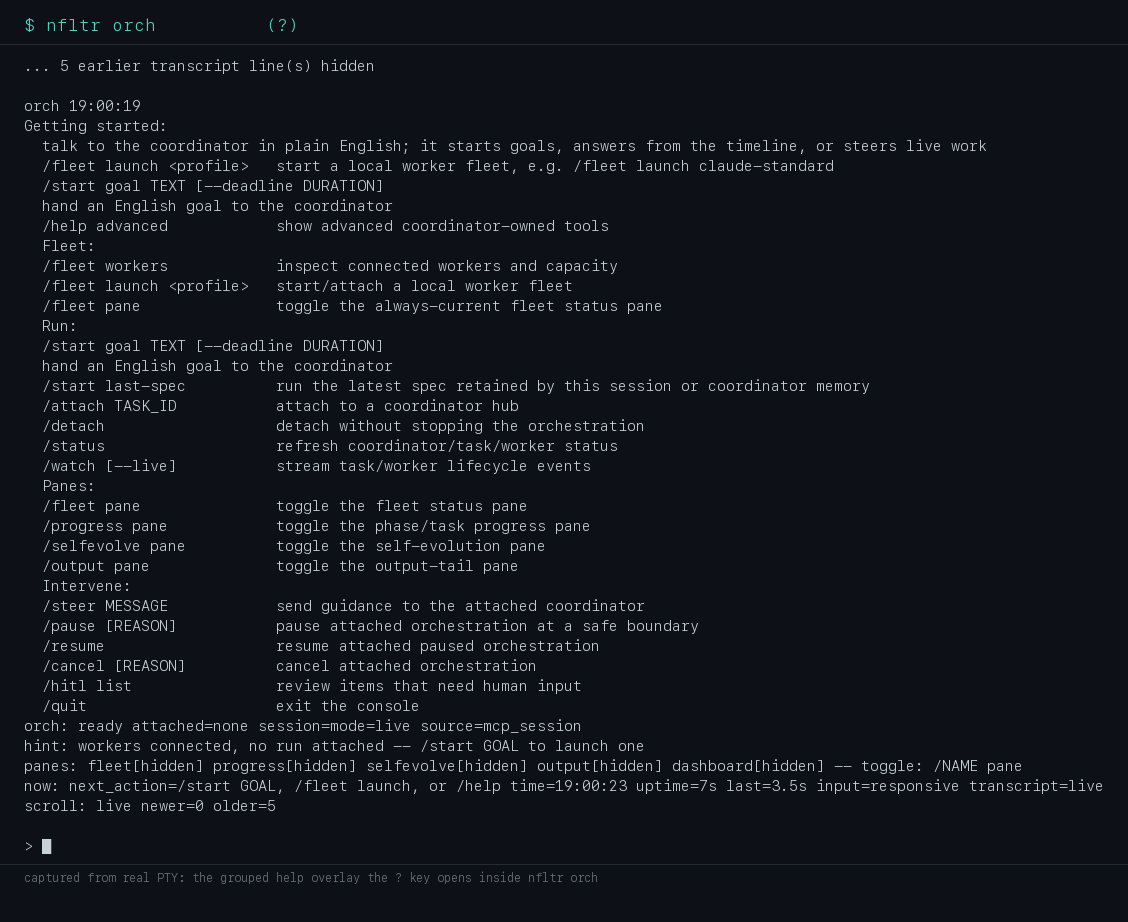

Captured with nfltr orch, then pressing ?. /help advanced adds the coordinator-owned tools — /spec, /queue, /events, /tick, /loop, /daemon, /admin, /skills, /artifact and more.

Watching a run from inside

With a run attached, the console tails its lifecycle events into the transcript by itself. Alt+W runs a bounded watch on demand, and /watch --live keeps a continuous stream open. Open the progress and output panes at the same time and you can see the graph, the per-task tail, and the event stream in one frame:

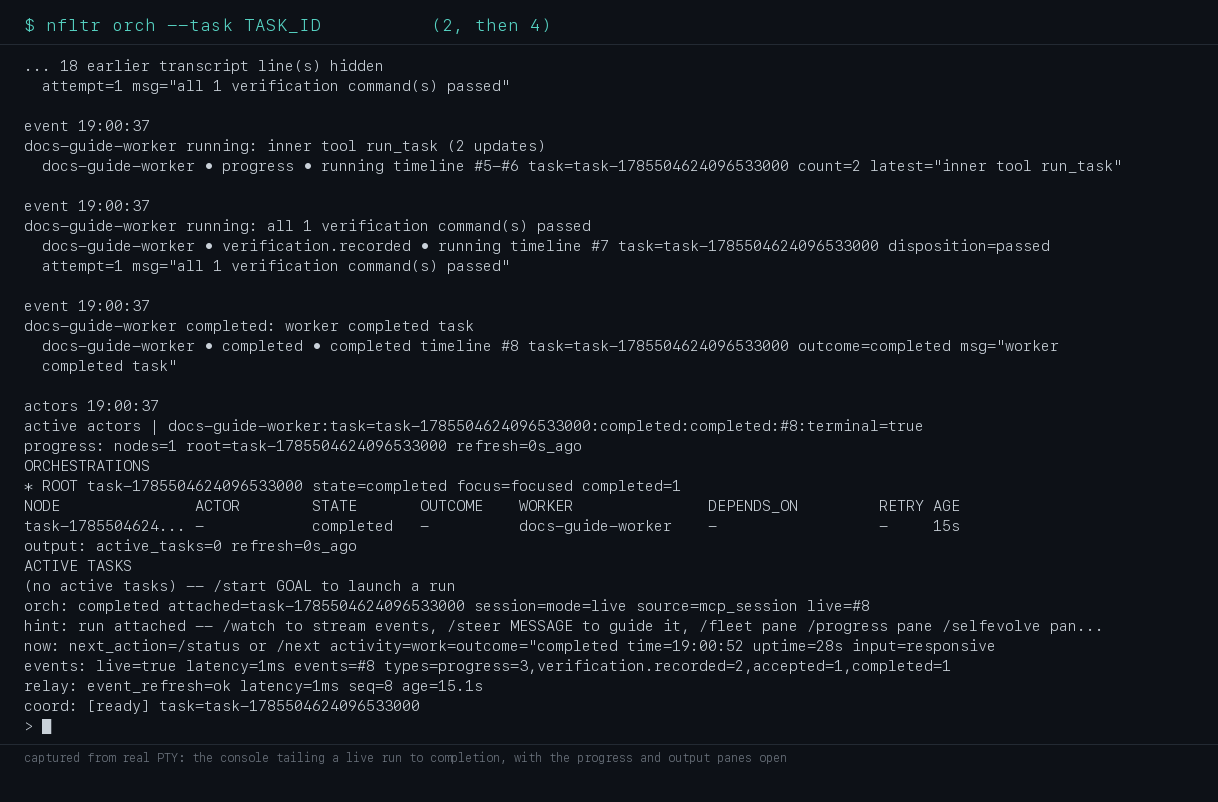

Captured with nfltr orch --task TASK_ID, then 2 and 4 to open the progress and output panes while the run completed.

Intervening from inside

Everything you would do from the CLI has a console equivalent that already knows which run you are attached to:

When the coordinator raises a question, the console surfaces it as an attention signal on the now: line and points you at /hitl or /task answer rather than blocking silently.

4. Keyboard shortcuts

Every binding below was read off the shipped console. Two keys people expect are deliberately absent: / is not bound to anything — it is simply the first character of a console command — and q alone does nothing, because quitting by word requires submitting q with Enter.

Navigation

Editing the command bar

Run control

Help and exit

5. Command reference

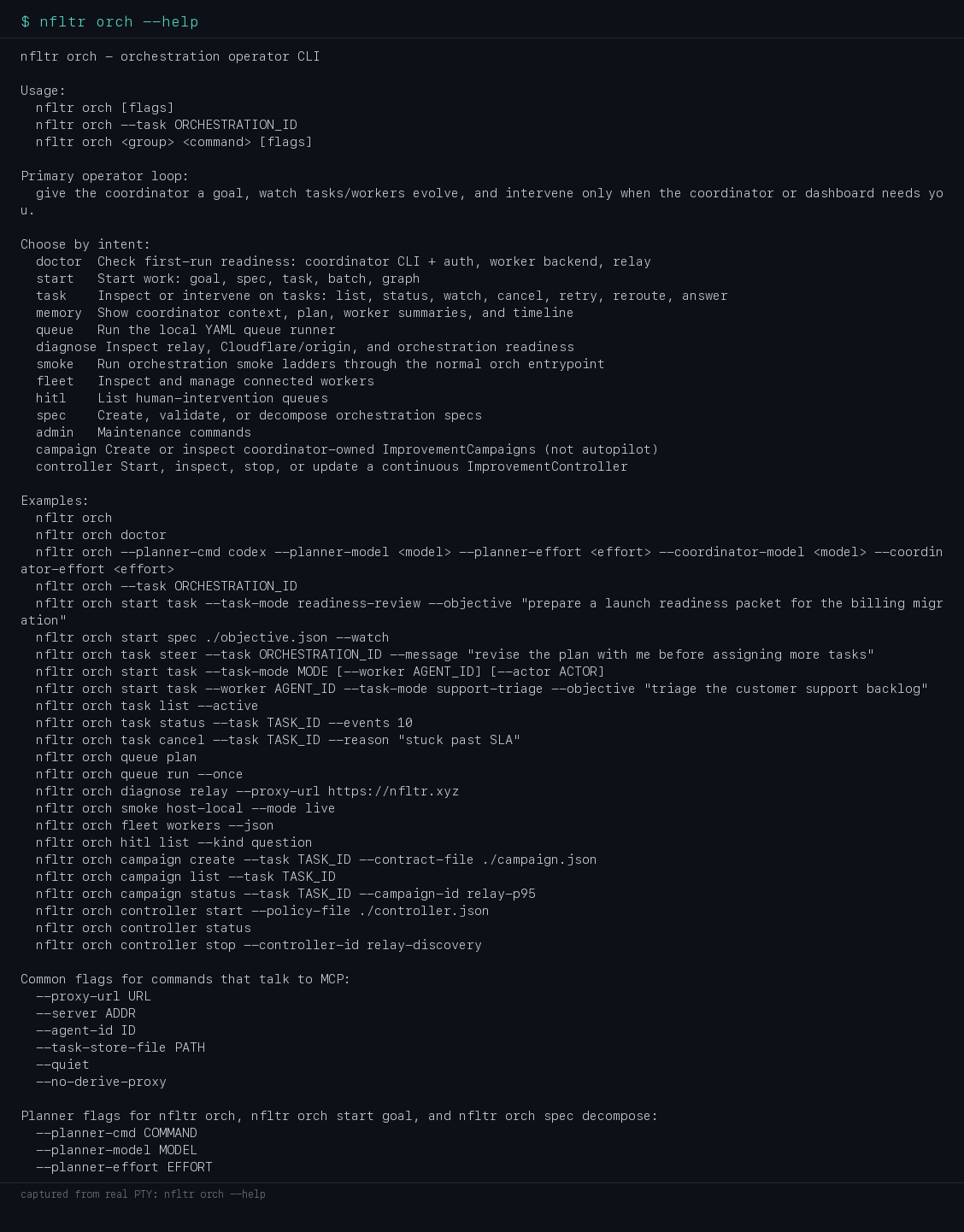

Outside the console, nfltr orch is organised into groups. nfltr orch --help lists them all; nfltr orch GROUP --help prints that group's shapes, and nfltr orch GROUP COMMAND --help prints every flag.

$ nfltr orch --help

doctor — first-run readiness

$ nfltr orch doctor --backend claude --json

--backend codex|claude picks which worker backend to check; --json emits the checklist for CI.

start — start work

Five ways in, from most to least English:

$ nfltr orch start goal "Confirm the on-call workstation is ready to run orchestration tasks" --watch

$ nfltr orch start spec ./onboarding-check.json --watch

$ nfltr orch start task --task-mode implement --worker WORKER_ID --objective "Stabilize the widget cache test" --watch

$ nfltr orch start batch ./two-slices.json --batch-id docs-fanout --watch

$ nfltr orch start graph run --manifest ./work-graph.json

start last-spec re-runs the most recent spec this session or coordinator memory retained. Flags worth knowing:

• --watch tails lifecycle events until the graph is terminal; --dry-run validates and renders the dispatch plan without dispatching; --detach forks a child, prints the orchestration id, and returns.
• --worktree runs the work on an isolated branch; --branch NAME and --base-ref REF control it, and --keep-worktree-on-failure (on by default) preserves it for inspection.
• --objective-file FILE and --goal-file FILE read long instructions from disk instead of the shell.
• --task-mode MODE is required for start task; --worker AGENT_ID pins a worker, --actor ACTOR is descriptive metadata, and --idempotency-key KEY makes a retry safe.
• --timeout-ms, --hard-timeout-ms and --acceptance-lapse-ms bound how long a dispatch may live; --require-approval with --approval-reason makes a human confirm before work continues.
• --graph eval preflights a work-graph manifest instead of running it.

task — inspect and intervene

$ nfltr orch task list --active

$ nfltr orch task status --task TASK_ID --events 20

$ nfltr orch task watch --task TASK_ID

$ nfltr orch task result --task TASK_ID

Most of these also accept --json for scripting. task list is the exception — it takes --output text|json|csv|jsonl instead.

memory — what the coordinator knows

$ nfltr orch memory --task TASK_ID --limit 50

Prints the coordinator's context, plan, worker summaries and learning trail for one orchestration. --json for the raw record.

queue — the local YAML queue runner

$ nfltr orch queue init

$ nfltr orch queue validate --workflow ./workflow.yaml

$ nfltr orch queue plan

$ nfltr orch queue run --once

init scaffolds the files, validate checks them, plan shows what would run, run executes (--once for a single pass), and status reports where the runner got to. --workflow, --queue and --state-dir point at non-default paths.

diagnose — is the path healthy?

$ nfltr orch diagnose relay --proxy-url https://nfltr.xyz

Checks relay, edge/origin and orchestration readiness in one pass. --origin-url and --json are the other flags you will use.

fleet — the workers

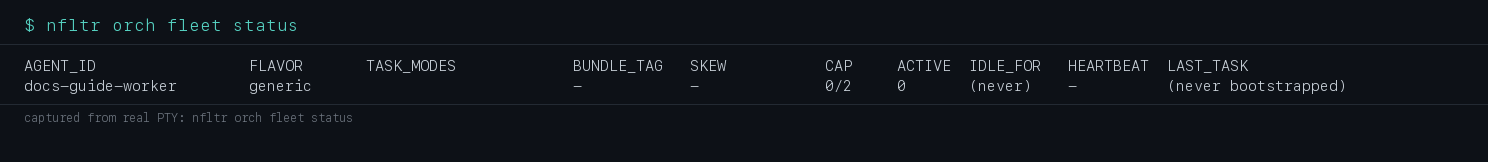

$ nfltr orch fleet status

Add --json to any of them for machine-readable output.

hitl — what is waiting on a human

$ nfltr orch hitl list --kind question

--kind approval|question|escalation|review|exception narrows the queue, --worker filters by worker, and --limit caps the rows. Resolve entries with orch task answer, approve or reject.

spec — author and check objectives before dispatch

$ nfltr orch spec template --name single-task

$ nfltr orch spec validate ./onboarding-check.json

$ nfltr orch spec decompose --goal "Confirm the on-call workstation is ready to run orchestration tasks"

template emits a starter spec — valid names are generic, research, single-task, multi-task and pipeline. validate checks shape and references without talking to a worker (--workers, --require-worktree), and decompose asks the planner to turn plain English into spec JSON (--workers, --dry-run, --json).

smoke — the readiness ladder

$ nfltr orch smoke host-local --mode live

--mode mixed|live|dry-run chooses how much really executes; --leg NAME runs one rung of the ladder.

admin — maintenance

$ nfltr orch admin task-store stats

$ nfltr orch admin task-store vacuum --max-events 200 --dry-run

Also admin cleanup --base-dir DIR --worktrees (dry-run unless you add --yes), admin prune-state --older-than DUR, and admin preauthorize-origin-write / admin preauthorizations for workspaces that may write to their origin.

campaign — bounded, coordinator-owned improvement contracts

$ nfltr orch campaign create --task TASK_ID --contract-file ./campaign.json

$ nfltr orch campaign list --task TASK_ID

$ nfltr orch campaign status --task TASK_ID --campaign-id relay-p95

$ nfltr orch campaign story --task TASK_ID --campaign-id relay-p95

$ nfltr orch campaign ready --task TASK_ID --scope relay

$ nfltr orch campaign signals --scope relay

$ nfltr orch campaign validate --contract-file ./campaign.json

A campaign records a scoped improvement contract — objective, immutable intent, allowed scopes, rollback checkpoint, budget, promotion rule, metrics — against an existing task. list, status, story, ready, signals, and validate are read-only. campaign story projects Intent / Path / Outcome — see Why did this campaign promote or roll back?. Preflight helpers live in Campaign operator tools. campaign admission set --max-concurrent N caps how many candidate slots may be in flight across every campaign at once; campaign admission status reads it back.

controller — keep campaigns coming

$ nfltr orch controller start --policy-file ./controller.json

$ nfltr orch controller status

$ nfltr orch controller update --controller-id relay-discovery --cadence 6h

$ nfltr orch controller stop --controller-id relay-discovery

A controller holds a durable policy — allowed scopes, intent template, budget and promotion templates, cadence — and creates campaigns from it on a schedule. The policy is immutable after creation; update only changes lifecycle fields (--enabled, --status, --cadence). Omit --controller-id on status to list them all.

6. Workflows

From nothing to a first result

$ nfltr orch doctor

$ nfltr orch fleet status

No workers? Start one on the machine that should do the work, with the labels your objective will target:

$ nfltr worker --labels nfltr.supports_task_mode.implement=true,nfltr.worker.tool=run_task,pool=dev \
    --mcp-command "nfltr claude-mcp --cwd ~/project --task-mode \${TASK_MODE}"

Or bring up a whole local fleet from a named profile, previewing it first:

$ nfltr orch fleet launch claude-standard --dry-run

$ nfltr orch fleet launch claude-standard

Confirm capacity, then dispatch:

$ nfltr orch fleet status

$ nfltr orch start goal "Confirm the on-call workstation is ready to run orchestration tasks" --watch

Start from a spec instead of a goal

A spec is one or more phases, each with a task_mode, a worker_label to target, and plain-English instructions. Draft, check, then run it:

$ nfltr orch spec template --name single-task > ./onboarding-check.json

$ nfltr orch spec validate ./onboarding-check.json

$ nfltr orch start spec ./onboarding-check.json --dry-run

$ nfltr orch start spec ./onboarding-check.json --watch

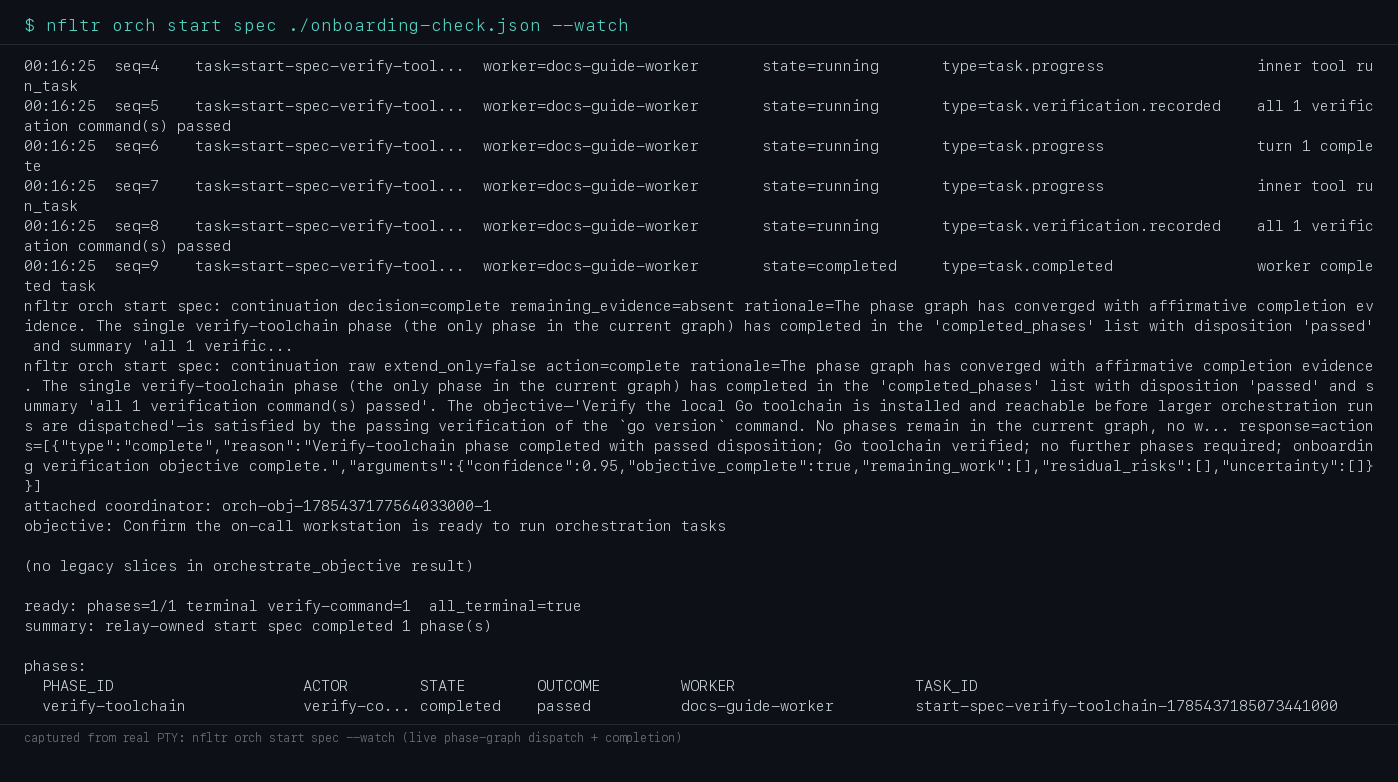

Captured with nfltr orch start spec ./onboarding-check.json --watch. Prefer plain English? nfltr orch spec decompose --goal "…" drafts the phase graph for you, and its output pipes straight into nfltr orch start spec - --watch.

Watch it

Three levels of detail, cheapest first:

$ nfltr orch task status --task TASK_ID --events 20

$ nfltr orch task watch --task TASK_ID

$ nfltr orch --task TASK_ID

The last one opens the console attached to that run: the transcript tails events for you, 2 opens the progress pane, and 4 opens the per-task output tail. For a wide view across several runs at once, the same events mirror onto the Causal Operations Atlas at nfltr.xyz/dashboard (attention rail, causal canvas, task drawer, Trace Lab) — see the Dashboard walkthrough.

Inspect one task

$ nfltr orch task list --active

$ nfltr orch task status --task TASK_ID --events 20

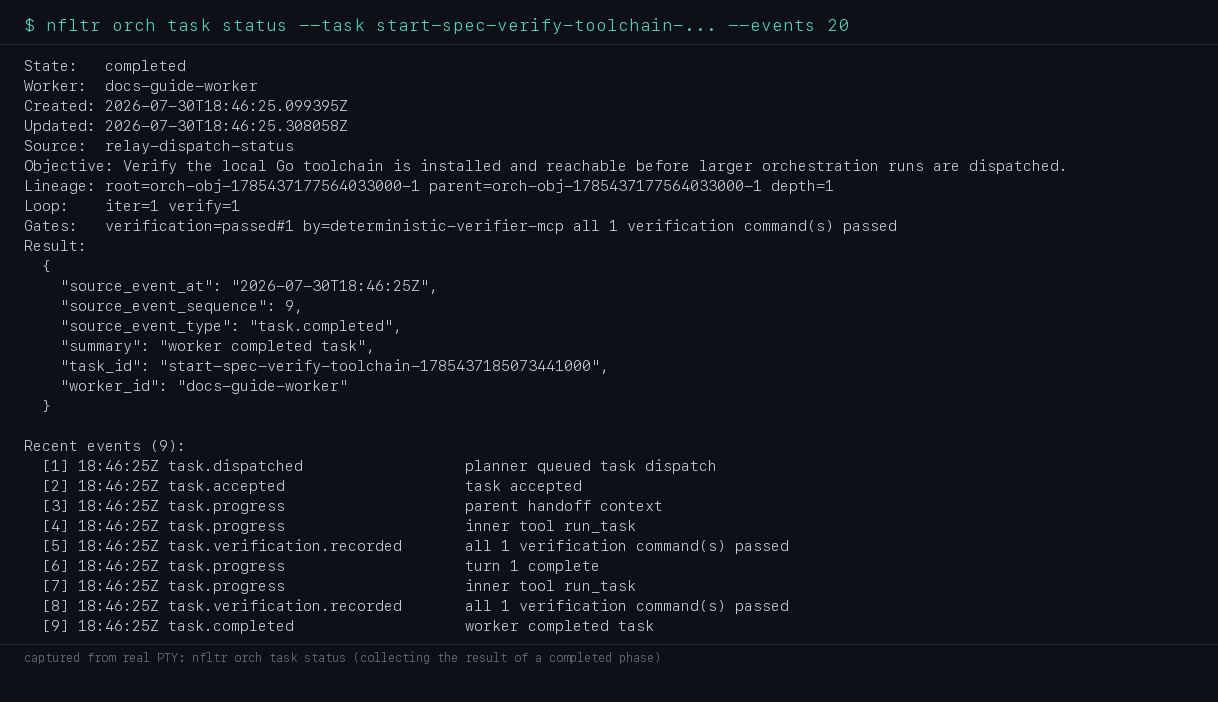

Captured with nfltr orch task status --task TASK_ID --events 20. For the artifacts a task produced, use nfltr orch task artifact list --task TASK_ID.

Answer a human-intervention question

When a phase needs a decision it lands in the HITL queue rather than blocking silently:

$ nfltr orch hitl list --kind question

$ nfltr orch task answer --task TASK_ID --message "proceed with the default pool"

Setup gates and risky mutations are approvals rather than questions:

$ nfltr orch task approve --task TASK_ID --reason "verified evidence looks correct"

$ nfltr orch task reject --task TASK_ID --reason "verification evidence is incomplete"

Cancel or retry

$ nfltr orch task cancel --task TASK_ID --reason "stuck past SLA"

$ nfltr orch task retry --task TASK_ID --bump-priority

$ nfltr orch task reroute --task TASK_ID

retry re-dispatches, preferring a worker other than the one that failed unless you pin --worker. reroute always sends it elsewhere. To clear a whole stuck fan-out at once:

$ nfltr orch task cancel --batch BATCH_ID --reason "superseded"

Read the result

$ nfltr orch task wait --task TASK_ID

$ nfltr orch task result --task TASK_ID

$ nfltr orch memory --task TASK_ID

wait blocks until the task is terminal, result prints just the structured result body with no event history, and memory shows the reasoning trail behind it.

Next

For a screenshot walkthrough of the same run on the dashboard, read nfltr orch: A Visual User Guide. For inner-LLM turn detail and tool calls, read Observe orchestration. For fan-out patterns across several workers, see Multi-agent orchestration. When something goes wrong, Troubleshooting is organised by symptom.
